The Best Ramp Access over Ground-Based Obstacles

Concrete Line Ramp and Landing

The Best Ramp Access over Ground-Based Obstacles

Concrete Line Ramp and Landing

The Ground Obstacle Ramps by SafeSmart Access offer a modular, robust solution to navigating over terrain irregularities in industrial settings. These ramps, with handrails standing at 900mm and featured toeboards at 104mm, grant stable and secure access for equipment and personnel across uneven or obstructed paths.

In alignment with the AS 1657:2018 standard, the ramps provide a 1200mm wide passage with a long landing and gradual gradient of 1:14, making them accessible to a broad range of users in various working conditions. The adaptable legs come with swivel base plate screw jacks, designed to ensure no interference with equipment such as line pumps and allow for installation on uneven ground.

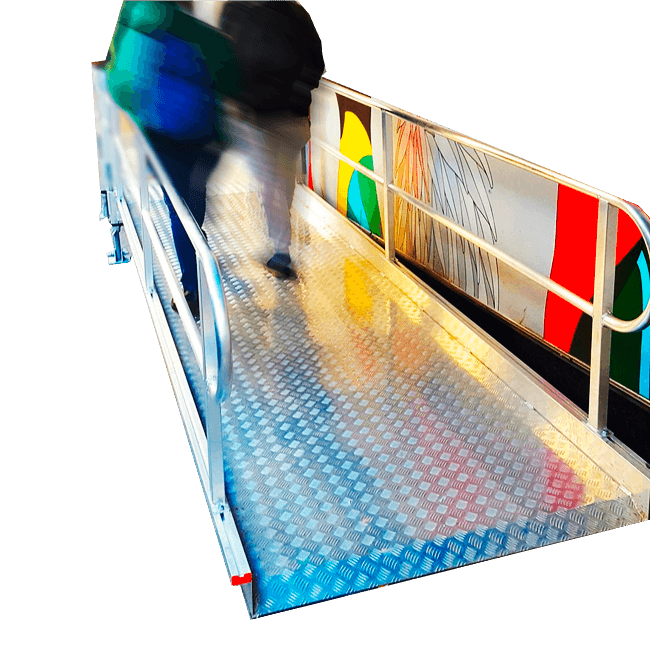

The ramps boast a heavy-duty chequer plate surface offering reliable traction, making them suitable for harsh working environments. Bevelled entrances and exits are incorporated to ensure a seamless transition between the ramp and walkway, preventing potential trip hazards for passing workers.

Safety & Efficiency

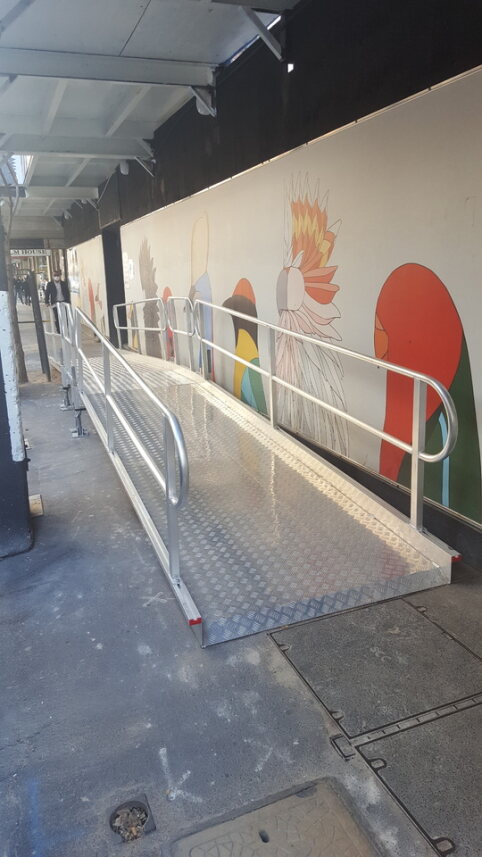

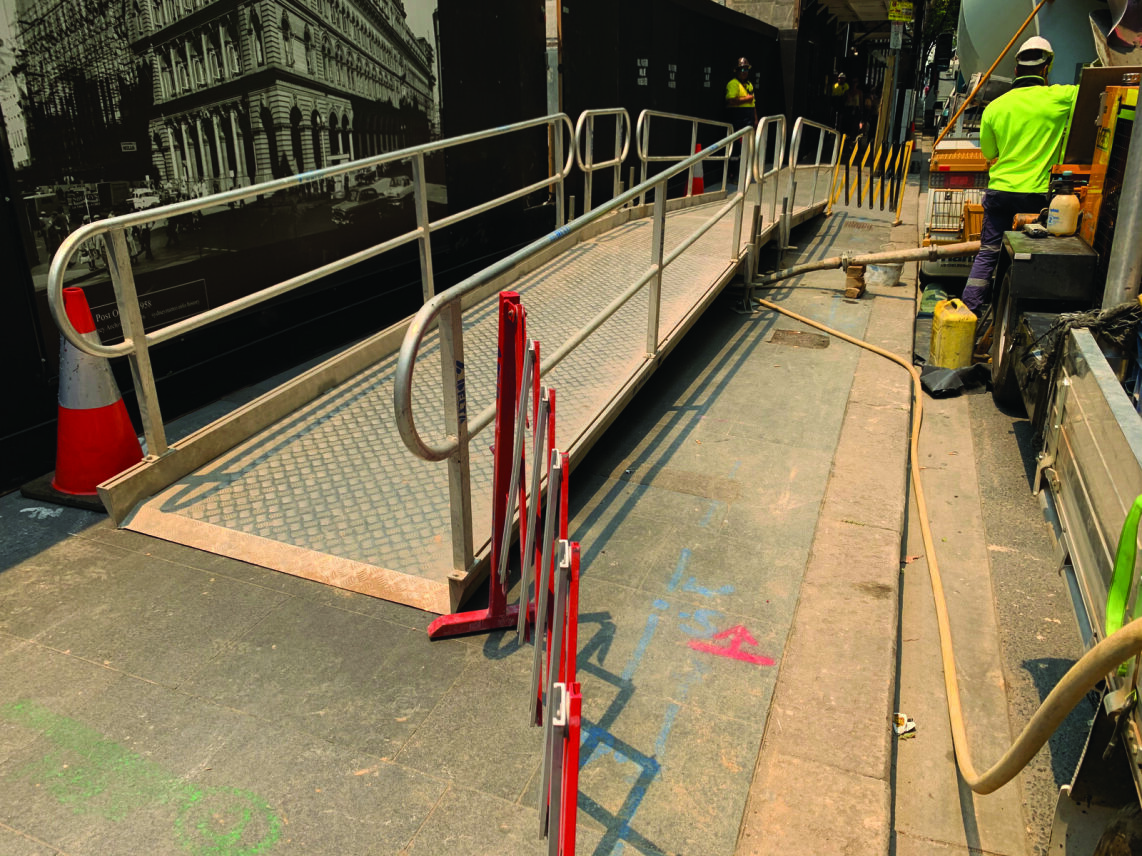

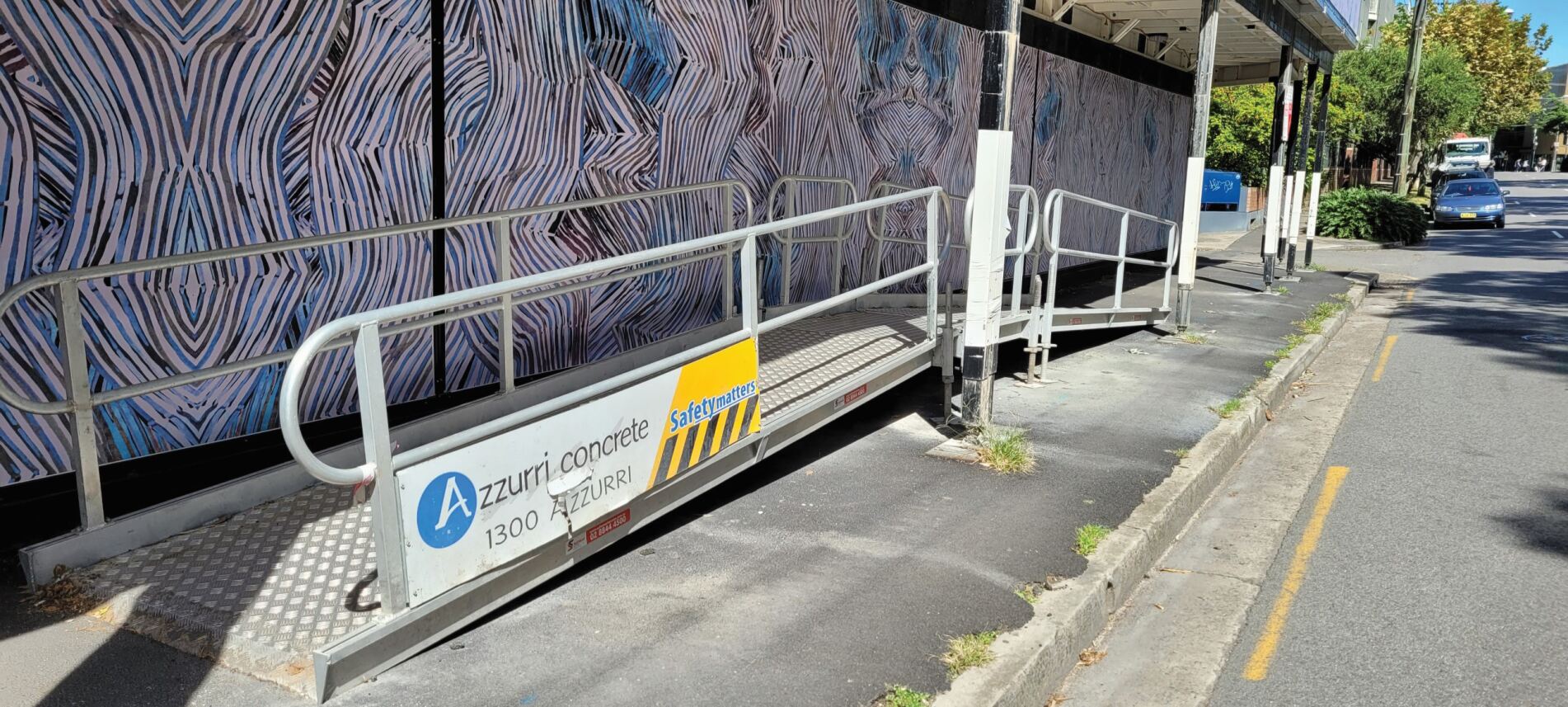

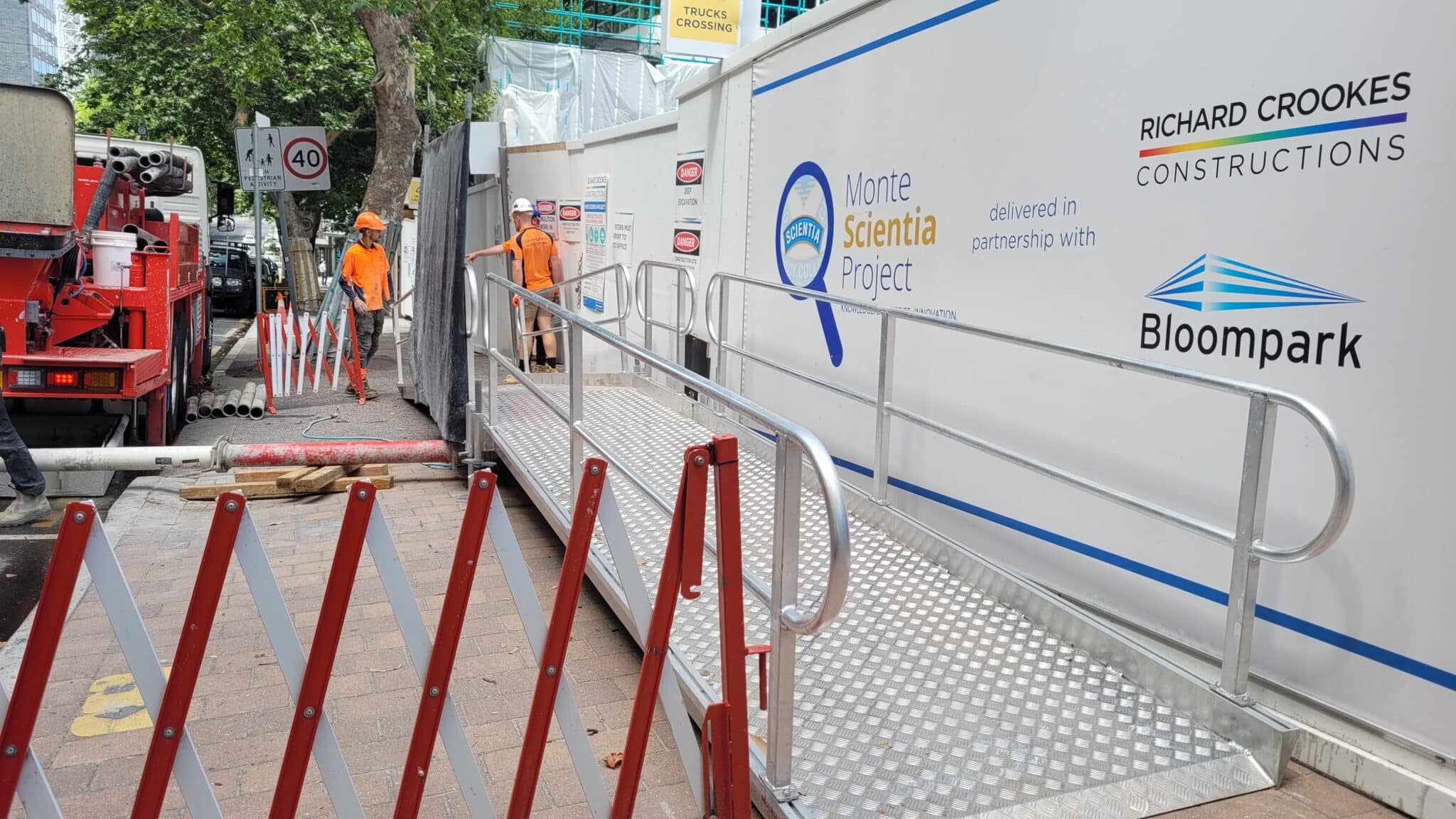

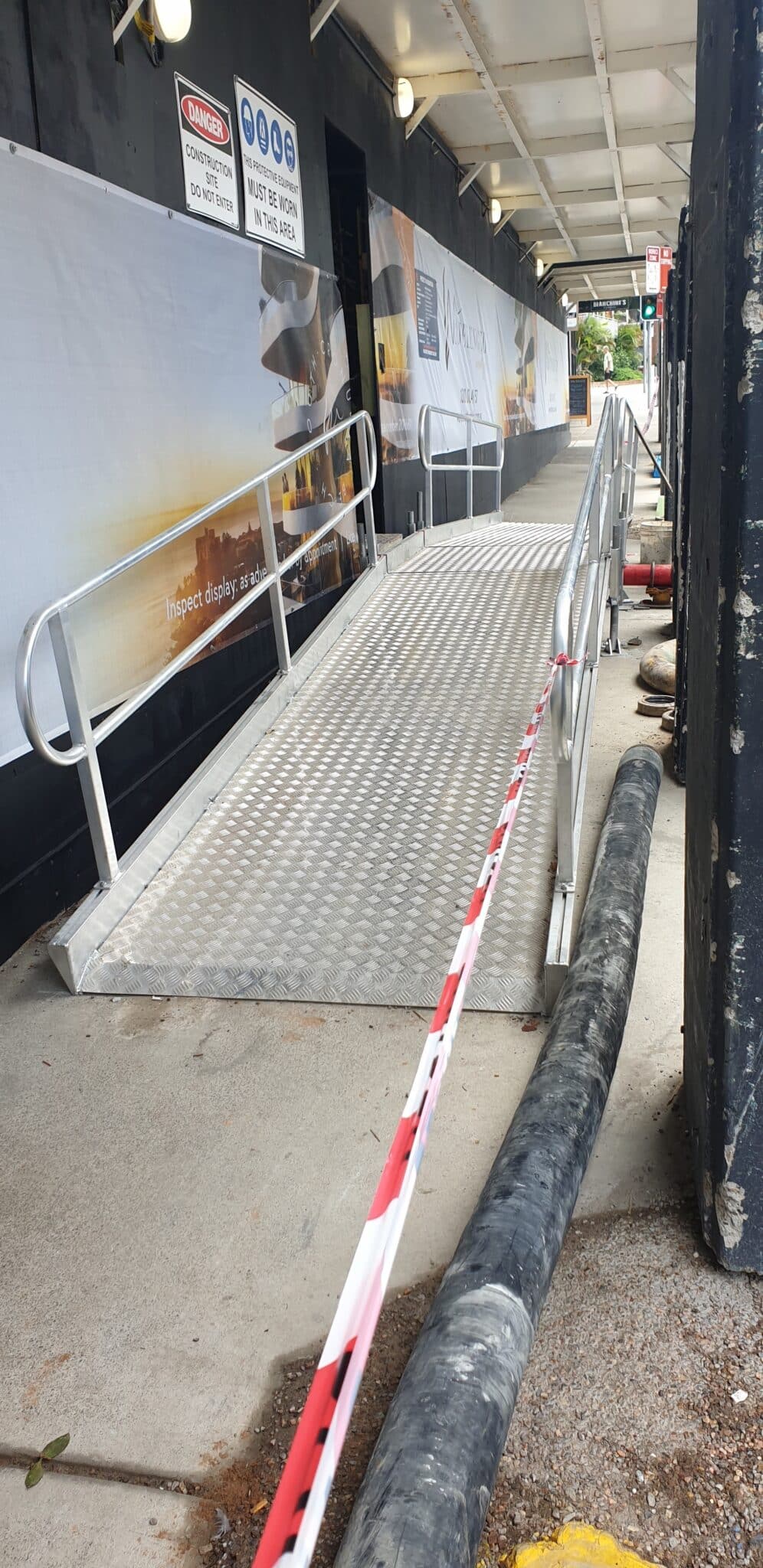

As a more permanent and effective option to using neoprene or plastic “humps”, this example safety pedestrian ramp unit was designed in-house by SafeSmart and built by us for a client in Sydney who were running a concrete pump line across a public path which had to remain open to foot traffic as per council requirements.

Like with this system, we manufacture all hose pedestrian ramps and temporary bridges from high tensile aluminium, professionally welded where needed for rigidity or engineered to feature smartly-connected assembly points for easy packing-down and transportation.

This footpath ramp inclines and declines at an easy 1:14 gradient, to allow safe crossing by pedestrians of all abilities and with the risk of slipping.

Usage Scenarios – 200 words

  • Mining Workshops: Creates a safe crossing for both workers and machinery, reducing the risk of work-related accidents.
  • Construction Sites: Enables material and equipment to be transported over trenches or other ground level variations.
  • Distribution Centers: Facilitates the effortless movement of goods across different warehouse sections, maximising productivity.
  • Utility and Maintenance Areas: Assists in the maintenance of essential infrastructure by providing precise access points over obstacles that might otherwise hinder worker movement or efficiency.

Designed with the end-user in mind, the Ground Obstacle Ramps are an example of SafeSmart Access’s commitment to delivering customisable, resilient, and safety-conscientious products for workplace environments

  • For use when concrete pumping lines are in operation
  • Complies with AS 1657:2018
  • 1200mm wide
  • 900mm high handrails with 104mm toe board
  • Adjustable legs to ensure no interference from the line pump
  • 1200mm long landing with 1:14 gradient ramps
  • Heavy duty chequer plate ramp surface
  • Bevelled entrance and exit for minimal walkway interruption
  • 2.5Kpa rated
  • Modular design for easy transportation
SKU: 210836
Concrete Line Ramp and Landing
  • Complies with AS 1657:2018
  • 1200mm wide
  • 1200mm long landing with 1:14 gradient ramps
  • 2.5Kpa rated

Product Description

The Ground Obstacle Ramps by SafeSmart Access offer a modular, robust solution to navigating over terrain irregularities in industrial settings. These ramps, with handrails standing at 900mm and featured toeboards at 104mm, grant stable and secure access for equipment and personnel across uneven or obstructed paths.

In alignment with the AS 1657:2018 standard, the ramps provide a 1200mm wide passage with a long landing and gradual gradient of 1:14, making them accessible to a broad range of users in various working conditions. The adaptable legs come with swivel base plate screw jacks, designed to ensure no interference with equipment such as line pumps and allow for installation on uneven ground.

The ramps boast a heavy-duty chequer plate surface offering reliable traction, making them suitable for harsh working environments. Bevelled entrances and exits are incorporated to ensure a seamless transition between the ramp and walkway, preventing potential trip hazards for passing workers.

Safety & Efficiency

As a more permanent and effective option to using neoprene or plastic “humps”, this example safety pedestrian ramp unit was designed in-house by SafeSmart and built by us for a client in Sydney who were running a concrete pump line across a public path which had to remain open to foot traffic as per council requirements.

Like with this system, we manufacture all hose pedestrian ramps and temporary bridges from high tensile aluminium, professionally welded where needed for rigidity or engineered to feature smartly-connected assembly points for easy packing-down and transportation.

This footpath ramp inclines and declines at an easy 1:14 gradient, to allow safe crossing by pedestrians of all abilities and with the risk of slipping.

Usage Scenarios – 200 words

  • Mining Workshops: Creates a safe crossing for both workers and machinery, reducing the risk of work-related accidents.
  • Construction Sites: Enables material and equipment to be transported over trenches or other ground level variations.
  • Distribution Centers: Facilitates the effortless movement of goods across different warehouse sections, maximising productivity.
  • Utility and Maintenance Areas: Assists in the maintenance of essential infrastructure by providing precise access points over obstacles that might otherwise hinder worker movement or efficiency.

Designed with the end-user in mind, the Ground Obstacle Ramps are an example of SafeSmart Access’s commitment to delivering customisable, resilient, and safety-conscientious products for workplace environments
